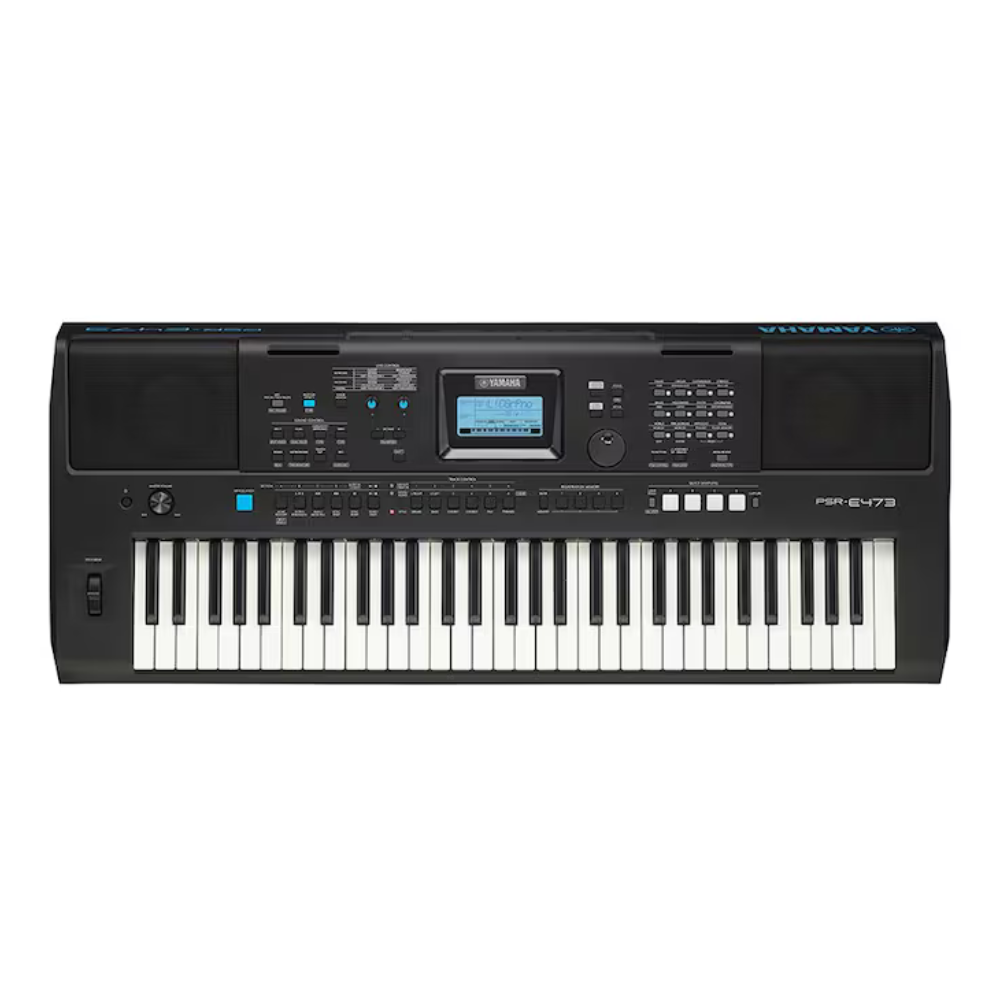

PSR-E473 Yamaha Portable Keyboard

Description

• Keyboard:
  • Number of Keys: 61 standard-size keys
  • Touch Response: Yes (Soft, Medium, Hard, Fixed) – Allows for dynamic control over volume based on playing strength.
  • Type: Organ-style
  • Other Controllers: Pitch Bend Wheel, Control Knobs (x 2, assignable for real-time sound manipulation), Motion Effect button (momentary)
• Voices:
  • Tone Generation Technology: AWM Stereo Sampling
  • Polyphony (Max.): 64 notes
  • Number of Preset Voices: 820 (294 Panel Voices + 28 Drum/SFX kits + 40 Arpeggio + 458 XGlite Voices)
  • Featured Voices: 14 Super Articulation Lite Voices (realistically simulate playing nuances), 3 Live! Voices, 9 Sweet! Voices, 6 Cool! Voices
  • Compatibility: GM (General MIDI), XGlite
• Effects:
  • DSP (Digital Signal Processor): DSP1: 41 types, DSP2: 12 types (2 channels for insertion effects, professional-grade)
  • Reverb: 12 types
  • Chorus: 5 types
  • Master EQ: 4 types
  • Functions: Dual/Layers, Split, Melody Suppressor (with pan adjustment), Crossfade (between Internal Sound and External Audio), Harmony/Echo (26 types), Arpeggio (152 types)
• Accompaniment Styles:
  • Number of Preset Styles: 290 auto accompaniment Styles (including a wide range of musical genres from around the world)
  • Fingering: Multi Finger, Smart Chord
  • Style Control: ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, TRACK ON/OFF
  • File Format: Style File Format (SFF)
  • Other Features: One Touch Setting (OTS)
  • Expandability: 10 Expansion Style slots
• Groove Creator:
  • Number of Grooves: 35
  • Number of Sections: 5 (4 Sections + 1 Musical Climax/Ending)
  • Allows for creating contemporary electronic music
• Songs:
  • Number of Preset Songs: 30
  • Recording: 10 Songs, 6 Tracks (5 Melody + 1 Style/Groove Creator)
  • Data Capacity: Approx. 19,000 notes (when only “melody” tracks are recorded)
  • Playback: SMF (Formats 0 & 1)
  • Recording Format: Original File Format (SMF 0 conversion function)
• USB Audio Recorder:
  • Recording/Playback Format: WAV (44.1 kHz, 16 bit, stereo)
  • Recording Time (max.): 80 minutes (approx. 0.9 GB) per Song
• Quick Sampling:
  • Sampling Type: One-shot, Loop
  • Samples (Preset/User): 4
  • Sampling Time: Approx. 9.6 sec
  • Sampling Sources: AUX IN, MIC INPUT, USB audio interface, WAV format files
  • Sampling Format: Original File Format (16 bit, stereo)
  • Sampling Rate: 44.1 kHz
• Lesson Functions:
  • Yamaha Education Suite (Y.E.S.6): Listening, Timing, Waiting
  • Chord Dictionary, Touch Tutor, Chord Study, Chord Progression
• Overall Controls:
  • Metronome: Yes
  • Tempo Range: 11 – 280 BPM
  • Transpose: -12 to 0 to +12 semitones
  • Tuning: 427.0 – 440.0 – 453.0 Hz (approx. 0.2 Hz increments)
  • Octave Button: Yes
  • Scale Type: 5 types
  • Registration Memory: 4 buttons x 8 banks (with Freeze control) – Save and instantly recall your favorite settings.
  • Portable Grand Button: Yes (instantly calls up a rich Grand Piano sound)
  • Mega Boost: Yes (+6dB of powerful volume, great for playing without a PA system)
  • Direct Category Access buttons (for quick navigation)
• Display: LCD with Backlight, English Language

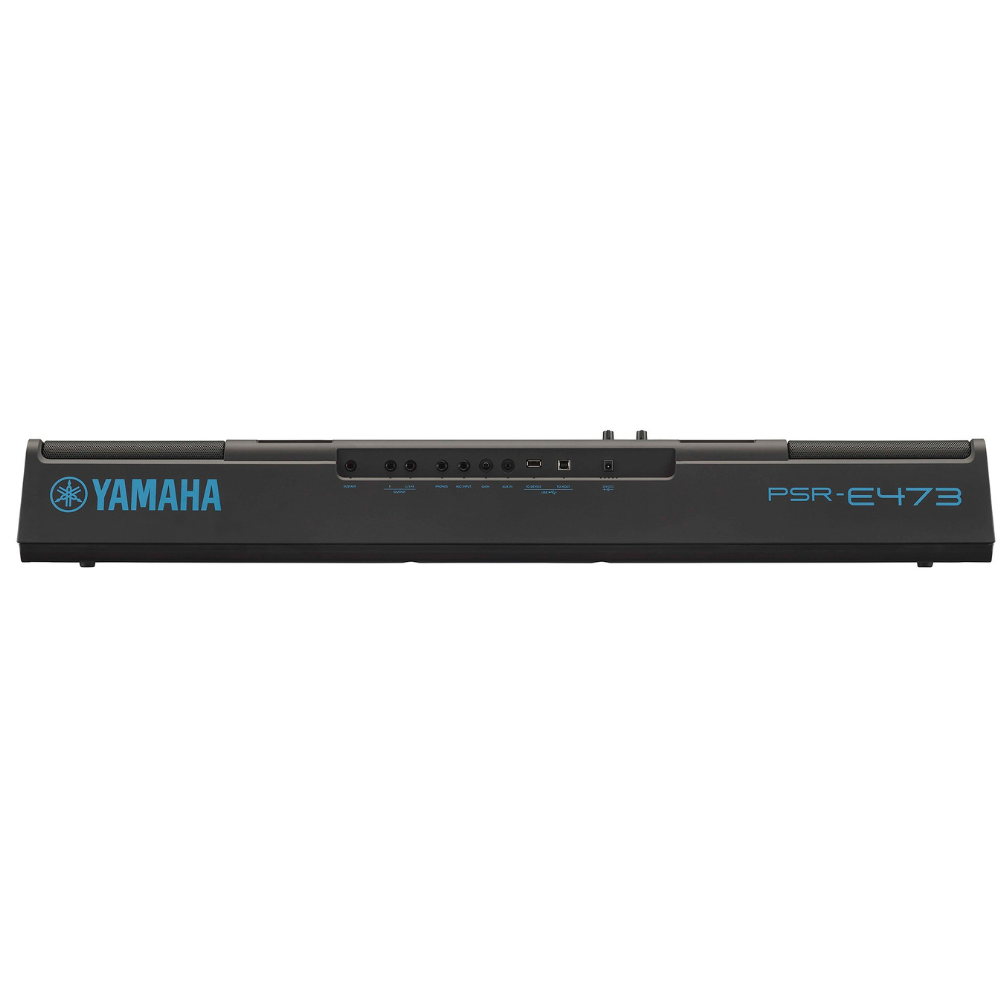

• Connectivity:
  • DC IN: 12V
  • AUX IN: Stereo mini jack x 1 (for connecting external audio sources)
  • Headphones: Standard stereo phone jack x 1
  • Sustain Pedal: Yes
  • USB TO DEVICE: Yes (for USB flash drive)
  • USB TO HOST: Yes (for MIDI and Audio transfer to a computer/smart device)
  • OUTPUT: Standard phone jack x 2 (Individual L/R outputs for connecting to PA systems, mixers, etc.)
  • Microphone Input: Standard phone jack x 1 (with Vocal Effects)
• Amplifiers and Speakers:
  • Amplifiers: 6 W + 6 W (Total 12W, powerful output)
  • Speakers: 12 cm x 2
• Power Supply:
  • AC Adaptor: PA-150B or an equivalent recommended by Yamaha (often included in India)
  • Batteries: Six “AA” size alkaline (LR6), manganese (R6), or Ni-MH rechargeable (HR6) batteries (not included)
  • Power Consumption: 9 W
  • Auto Power Off Function: Yes (time adjustable)
• Dimensions (W x D x H): 992 mm × 404 mm × 136 mm (39-1/16” × 15-7/8” × 5-3/8”)
• Weight: 7.0 kg (15 lb, 7 oz) (not including batteries)
• Included Accessories: Music Rest, Owner’s Manual. (AC adaptor is often included, and a Song Book is available as a digital download from Yamaha web site.)
• Country of Origin: India (for models sold in the Indian market, proudly “Make in India”)
• Colors Available: Black
